Types of Bulk Bags: Find the Right Bag for Your Material
When your operation is ready to transition from 50-pound bags to flexible intermediate bulk containers (FIBCs), or when you’re evaluating bulk bag options for a new system, the choices can seem overwhelming. With several customization options available, how do you know which bulk bag configuration will actually work for your specific material and process requirements?
The answer may not be as straightforward as you might think. At FormPak, we’ve spent over five decades engineering bulk bag systems that work seamlessly from the bag out. We’ve learned that choosing the right FIBC isn’t just about capacity and cost—it’s about understanding how your material behaves and how the bag will integrate with your entire handling system.
→ Jump to How to Specify Your Bulk Bag Requirements
Understanding Bulk Bag Options: What’s Available
Flexible Intermediate Bulk Containers (FIBCs), commonly called bulk bags, Super Sacks, or big bags, come in numerous configurations. Here’s what you need to know about the options available:
Bag Styles and Shapes
The physical construction style affects how the bag holds its shape when filled. There are two primary types of bags available.
 |
|

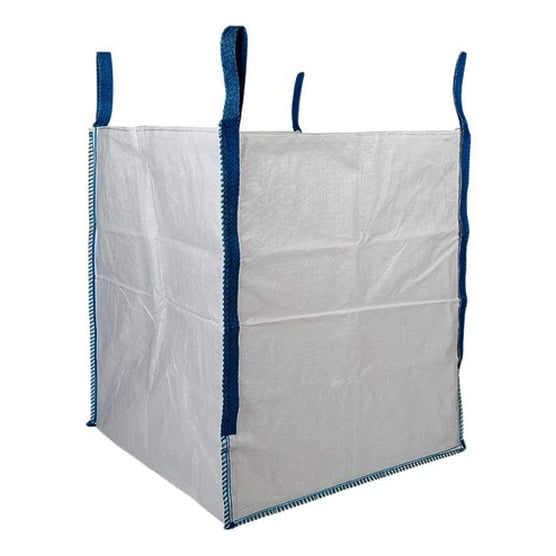

Standard Square Bags | Baffle Bags |
|
|
Top Opening Styles
How the bag opens at the top for filling.
|
|

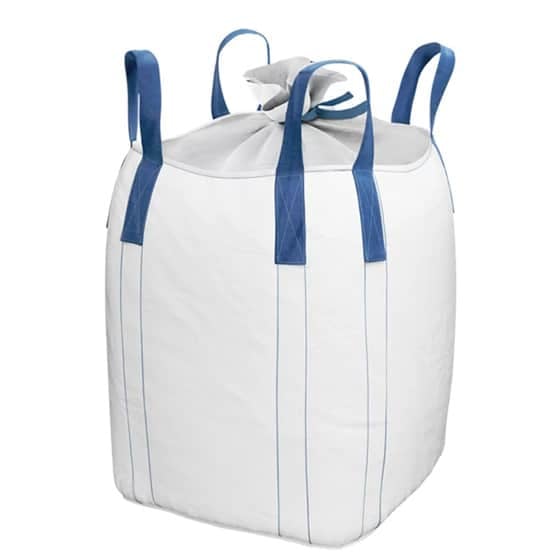

Spout Top (Most Commonly Used) | Duffle Top |
|
|
Bottom Discharge Styles
How the bag opens on the bottom for discharge.
|
|

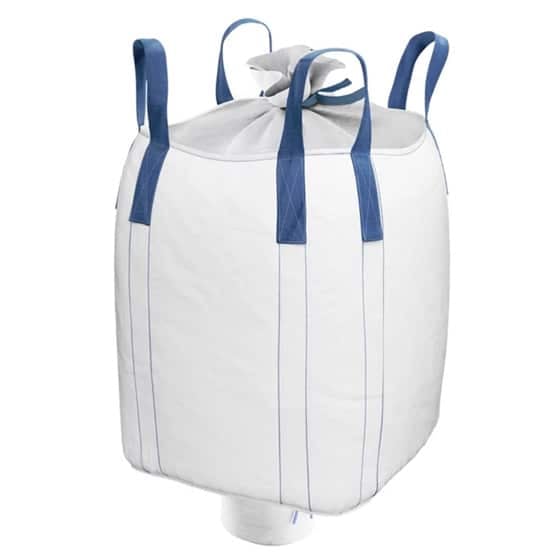

Flat Bottom | Discharge Spout |
|
|
Fabric Materials and Construction
Base Fabric Materials
There are two primary materials available for bulk bags. These materials are woven to create strong, flexible fabric.
Polypropylene (PP): Most common, durable, UV-resistant options available, recyclable
Polyethylene (PET): Alternative material, good chemical resistance, closed loop recycling (bag to bag or bottle to bag)
Fabric Coatings
Depending on your material, you may need fabric treatment that seals the fabric and prevents particles from sifting through. Take a look at some of the materials we’ve tested for bulk bags.
Uncoated | Coated | Laminated |
|
|
|
Liner and Containment Options for Fine Particles
Liners are interior barriers that serve two primary purposes: protecting your material from moisture and contamination, AND containing fine particles that might otherwise sift through the woven fabric.
When Liners are Most Commonly Used:
- Moisture-sensitive materials (hygroscopic materials like salt, sugar, starches)
- Very fine particles (under 100-200 microns) that can migrate through fabric weave
- Contamination prevention for food, pharmaceutical, or high-purity materials
- Products requiring FDA compliance or food-grade specifications
- High-value materials where product loss must be minimized
Two Main Liner Types
|
|

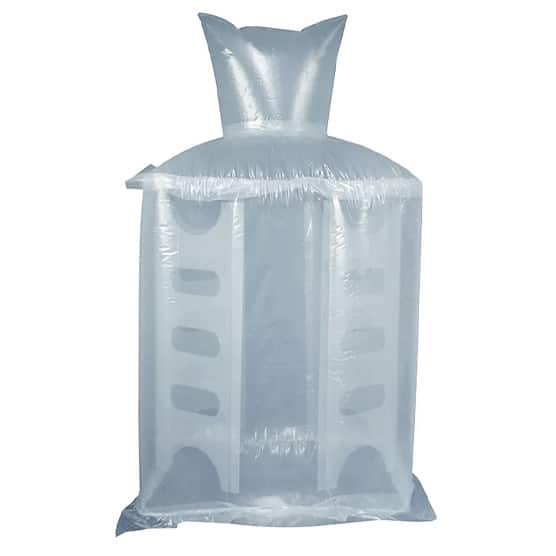

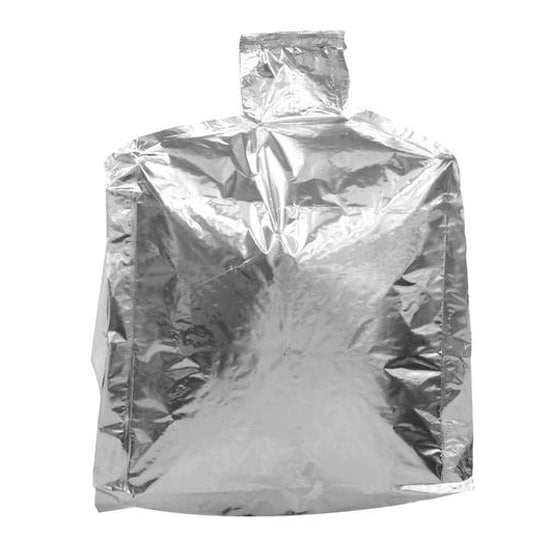

Basic Liners (Standard Polyethylene) | Foilized Liners (Complete Barrier) |
|
|
Sift-Proof Construction
Some materials are so fine that they can slip through the holes of the stitching (in the seams of the fabric). In these cases sift-proof design is needed to prevent material loss and ensure a safe working environment for operators.
Sift-Proof Design Includes:
- Reinforced seams and stitching prevent particle migration
- Essential for very fine powders (<100 microns)
- Typically combined with coated fabrics or liners

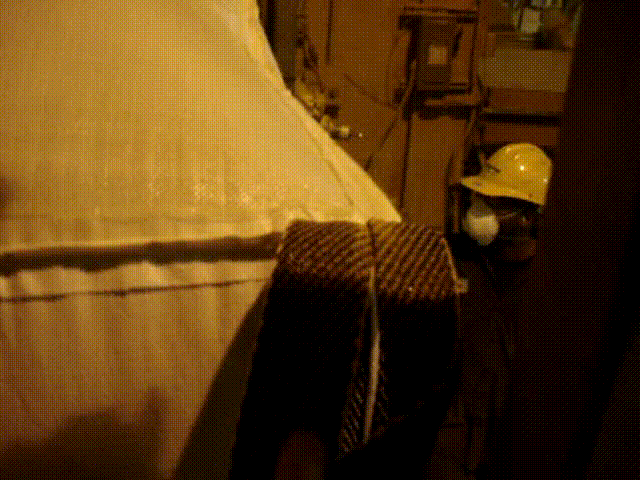

bag without sift proofing

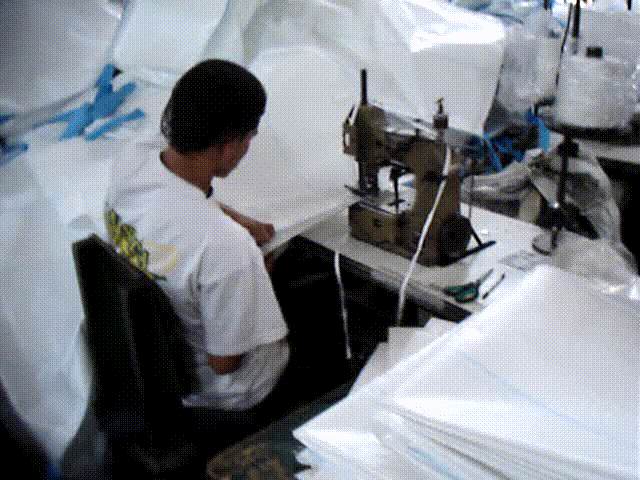

adding filler cord with sift proof sewing
How to Choose the Right Bag for Your Needs
Understanding what’s available is the first step. Choosing the right configuration for your specific application comes down to answering two fundamental questions in order:
Step 1: What size bag do I need?
This is driven by your material’s density and your desired fill weight.
Step 2: What features does that bag need?
This is driven by your material’s particle size, environmental requirements, and handling conditions.
Let’s walk through each step systematically so you can specify the right FIBC for your application.
Step 1: Determine Your Bag Size (Density-Driven)
Before you can select any bag features, you need to know what size bag you’re working with. Bag size is determined by a simple equation: fill weight ÷ bulk density = required bag volume.
Understanding Material Density
Density is how much your material weighs per unit of volume, typically measured in pounds per cubic foot (lbs/ft³) or kilograms per cubic meter (kg/m³). This single number determines the entire physical geometry of your bulk bag.
Why density is the foundation of bag sizing:
A 2,000-pound bag means completely different things for different materials:
- Light material (fumed silica at 4 lbs/ft³): Requires 500 cubic feet of volume—that’s a massive bag roughly 6 feet in diameter and 8+ feet tall
- Medium material (flour at 30 lbs/ft³): Requires 67 cubic feet—a standard 42″ x 42″ x 48″ bag
- Dense material (sand at 100 lbs/ft³): Requires only 20 cubic feet—a compact 35″ x 35″ x 36″ bag
These are the same weight, but require completely different bag dimensions. This is why you must know your material density before you can specify anything else.
Calculating Your Required Bag Size
Methods to determine your material’s bulk density:
- Check material specifications from your supplier
- Measure the material yourself by weighing a known volume
- Send samples to Formpak Group for free density testing
Note: Some materials have variable density depending on compaction—these materials must be tested in actual handling conditions. FormPak offers free material testing.
1) Decide on target fill weight
- What weight per bag optimizes your handling equipment?
- What weight can your operators safely manage?
- What fits your storage and transport logistics?
- Typical range: 500 lbs to 4,000 lbs per bag
2) Calculate required volume
Required volume (ft³) = Fill weight (lbs) ÷ Bulk density (lbs/ft³)
Example:
- Material: Plastic pellets
- Bulk density: 40 lbs/ft³
- Desired fill weight: 2,000 lbs
- Required volume: 2,000 ÷ 40 = 50 cubic feet
3) Match to standard bag dimensions
A 50 cubic foot bag translates to approximately:
- 42″ x 42″ x 48″ tall (standard size)
- Or 38″ x 38″ x 54″ tall (taller, narrower profile)
- Or 45″ x 45″ x 42″ tall (shorter, wider profile)
4) Match to standard bag dimensions
A 50 cubic foot bag translates to approximately:
- 42″ x 42″ x 48″ tall (standard size)
- Or 38″ x 38″ x 54″ tall (taller, narrower profile)
- Or 45″ x 45″ x 42″ tall (shorter, wider profile)
Common Bag Sizes and Capacity Ranges
Understanding standard bag dimensions helps you work within economical options:
Small bags (35″ x 35″):
- Volume: ~25-35 cubic feet
- Typical capacity: 500-1,500 lbs depending on density
- Good for: Tight spaces, manual handling, smaller batch sizes
Standard bags (42″ x 42″):
- Volume: ~40-60 cubic feet depending on height
- Typical capacity: 1,500-3,000 lbs for most materials
- Good for: Most industrial applications, balance of capacity and handling
Large bags (48″ x 48″):
- Volume: ~65-85 cubic feet depending on height
- Typical capacity: 2,500-4,000+ lbs for most materials
- Good for: High-volume operations, minimizing bag changes
Operator Ergonomics and Size Restrictions
Bag height isn’t just about facility clearances—it’s also about operator accessibility and workflow efficiency.
Reach height considerations:
Consider the total working height when bags are positioned on equipment. Your operators will have to reach the top of the bag to open it for filling and access the bottom of the bag for discharging.
Stacking and storage considerations:
Shorter bags are safer to handle and easier to stack, along with improving ergonomics for your operators.
Important: Always verify that your selected bag dimensions work within your facility constraints (ceiling heights, door widths, storage areas) AND with your handling equipment (hoist capacities, forklift clearances) AND provide reasonable operator access for your workflow AND optimize your logistics costs.
Transportation optimization
Bag dimensions significantly impact logistics costs and efficiency. Standard truck and container dimensions should influence your bag size selection.
Standard truck trailer interior width: 96-102 inches
This creates clear optimization opportunities for bag width selection:
48” x 48″ bags are perfect for freight transportation:
- 2 bags side-by-side = 96″ (exactly fills standard trailer width)
- Maximum utilization of truck space
- Higher capacity per shipment
- May require more careful loading to avoid width issues
Step 2: Select Bag Features (Particle Size and Requirements-Driven)
Now that you know what size bag you need, it’s time to specify the construction features. This is where your material’s particle size becomes critical, along with other application requirements like moisture sensitivity, safety certifications, and handling conditions.
Understanding Particle Size Impact on Bag Construction
Particle size determines whether your material will stay contained in the bag or whether it will sift through the fabric weave, migrate through seams, or create dust issues.
Critical Note on Ultra-Fine Powders:
Materials under 50 microns (like fumed silica, titanium dioxide, or fine pharmaceutical powders) are fundamentally different from standard fine powders like flour. These ultra-fine particles are so small they can:
- Migrate through standard fabric weave even when coated
- Seep through seams and stitching holes that would contain flour
- Create significant dust and product loss without proper containment
- Require specialized sift-proof construction with reinforced seams
Liner and Coating Requirements
Liners serve three primary purposes: moisture protection, atmosphere control, and particle containment.
- Fabric coatings are a good idea if your material is under 200 microns
- Foilized liners are like the inside of a chip bag. It’s the only type of liner that prevents airflow completely. This is useful for sensitive or perishable materials.
- Polyethylene liners are commonly used in food applications for material containment purposes.
- Sift-proof seams is critical for any material under 50 microns
When you can skip the liner:
- Material is coarse (over 500 microns) and not moisture-sensitive
- Coated fabric provides adequate particle containment
- Environmental conditions are controlled
- Cost reduction is priority
- Bag will be disposed after single use anyway
